New! mObridge plug 'n' play B&O amplifier replacement kit now shipping!

[mObridge]

Hi All!

We are now offering a full PNP kit for the 6G Ranger. This was developed in Australia with them having access to the vehicle 18 months ago so the kit is very well sorted out and has already been installed into many cars already.

The kit comes with everything required:

• 9 Channel K2 8.1.1 1.2KW RMS amplifier
• PNP harness into the factory harness
• Power harness direct from the battery for more current
• Replacement tweeter PNP cables for the amp to control these in the DSP and not the ACM
• Mounting bracket with all screws to bolt into the factory location
• Comprehensive fitment instructions

https://mobridge.us/product/ford-ranger-amplifier-plug-and-play-a2b/

These are now in stock and shipping!

Sponsored



[be.jammmin]

How is the fiber optic signal captured from the head unit on this amp/dsp? If that isn't used how is the signal from the head unit captured with no degradation? Also does this plug into the speaker harness for the factory system at the old amp location, so you don't have to splice to use the factory speaker wires and then you just have to run the front tweeter wires provided? Thanks in advance. Product looks promising since it could replace a zen TV, DSP and Amplifier system.



[mObridge]

The new Ranger uses A2B which is also a digital audio bus. So its direct digital straight into the DSP and amp.

This does plug directly into the factory system including the A2B extension cable. So yes this replaces the Zen, DSP and amp all in one. The Bronco guys have been fitting our kit for some time now.

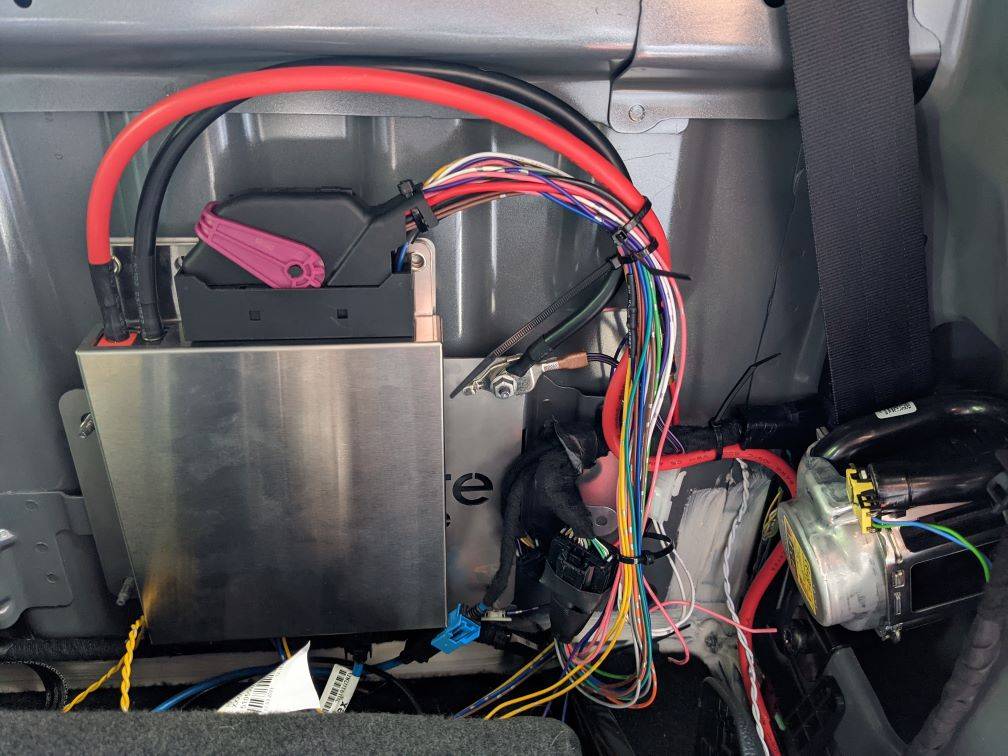

I've attached a photo of how it looks in place of the B&O.



[Arsenall11]

I’m taking that the price is in Australian currency?



[mObridge]

The website is all in USD.



[LT Dangle]

@mObridge anything for the B&O on the 5G Ranger?



[Bonus Oz]

And i was thinking its still expensive in ozzy dollars



[Cyrusblack]

Im good with the factory setup since I haven’t needed to go above 10 on the volume



[mObridge]

And i was thinking its still expensive in ozzy dollars

Its definitely a premium product that's for sure. Having said that, you would really struggle to put together:
- A2B interface
- 8 Channel DSP amplifier (2 x 150w RMS + 6 x 75w RMS)
- 1 Mono block (400w RMS @2ohm)
- Full wiring kit
- mounting bracket
for less than the price of our kit. Then add the labor required piecing together all those modules.

We are an Aussie based company so the transfer pricing is a little different when it lands in the US. Email us if you want a quote for a kit delivered in Aus.
[email protected]



[mObridge]

Im good with the factory setup since I haven’t needed to go above 10 on the volume

Your hearing must be a lot better than mine! Comments like this make me worry about what all these years in car audio have done to my hearing...



[mObridge]

@mObridge anything for the B&O on the 5G Ranger?

The stand alone universal fit amp will work in these cars, we just havent put it into a full kit, it will only come with the basic amp speaker harness, feel free to PM if you have questions. That being said, its still going to be the easiest way to upgrade audio in these cars it just requires a little more effort and wiring to install.

https://mobridge.us/product/mobridge-bo-a2b-ford-amp/



[gstahl]

On your website you have an in car picture…
What sub is that? Is that a ranger (it is different than the picture here)



[Cyrusblack]

Your hearing must be a lot better than mine! Comments like this make me worry about what all these years in car audio have done to my hearing...

Nah - you're fine. I just don’t listen to my music as loud as I use to in the 80’s



[mObridge]

On your website you have an in car picture…
What sub is that? Is that a ranger (it is different than the picture here)

That is the amp mounted in a Bronco, the Bronco kit has been around for about a year now. It was used as a placeholder. I have just updated that photo with the one of the amp in the ranger.



[HyperM3]

How does this help with the garbage factory speakers? I would think a speaker upgrade would be better first before the amp upgrade.
