Another tire fitment question...

[JM77]

New to the forum. I recently purchased a 2025 XLT FX4. I am using the oem wheels for winter with dedicated snow tires. I'll need a set of wheels for the rest of the year and have been looking at take offs. I've recently found these...2021 Ranger wheels, 18"x8" with +55 offset. My tire of choice is a 255/70r18 (Cooper R&T AT 116T). Will the tire/wheel combo clear the upper A arm? I have no desire to lift or level. Along with highway time, the truck will spend time on logging/mining roads and will tow a 4200-5700 lb, 20' TT about 1500 miles per year on rural/forest service paved roads. 32" tall tires will look good and do all that I need. Thank you in advance for the help!

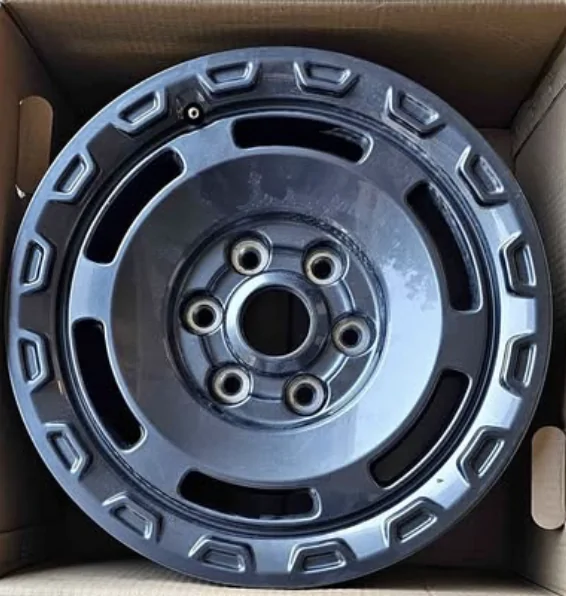

By the way...The second photo is my very favorite wheel (17x8.5 with +30 offset, 255/75r17), but I think it may have too much poke for my taste. If I'm wrong, let me know...

Sponsored



[embedded rock]

Try this. It should help you with answers.

https://www.thewheelcalculator.com/



[JM77]

Try this. It should help you with answers.

https://www.thewheelcalculator.com/

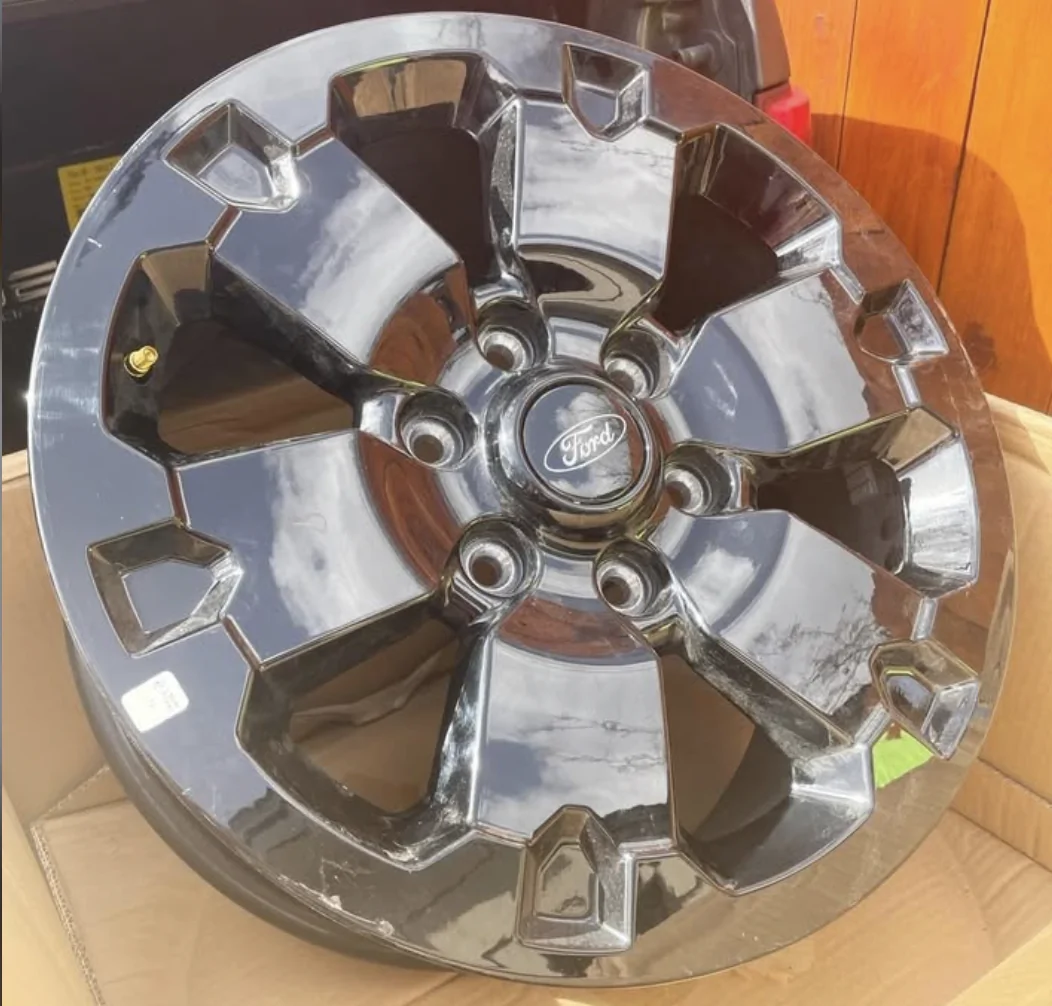

Thank you. Using my tire depth gauge, the distance from the tire to the upper a-arm is 13/32" or about 10.3mm. The 2021 wheel (Black wheel in pic.) moves it about 6.3 mm closer. Depending on tire variance with a 255/70r18 tire, I'll have approximately 4mm clearance. Use a 1/4" spacer?

The grey bronco wheel moves the poke out almost 1.5". Looks like the tire sidewall will sit beyond the fender lip. Dang! (Calculator wouldn't let me use a 255/75r17 tire. Used a 255/70r17 instead.



[embedded rock]

Here's a better online calculator. https://tiresize.com/wheel-offset-calculator/

You mention a black wheel, but there is no picture.

Here's a wheel spacer to keep in mind as a possibility.
https://wheeladaptersusa.com/produc...ead-lug-nuts-for-minimal-thread-loss-usa-made

Just keep noodling your scenario since you are the one who is buying the wheels and tires.



[JM77]

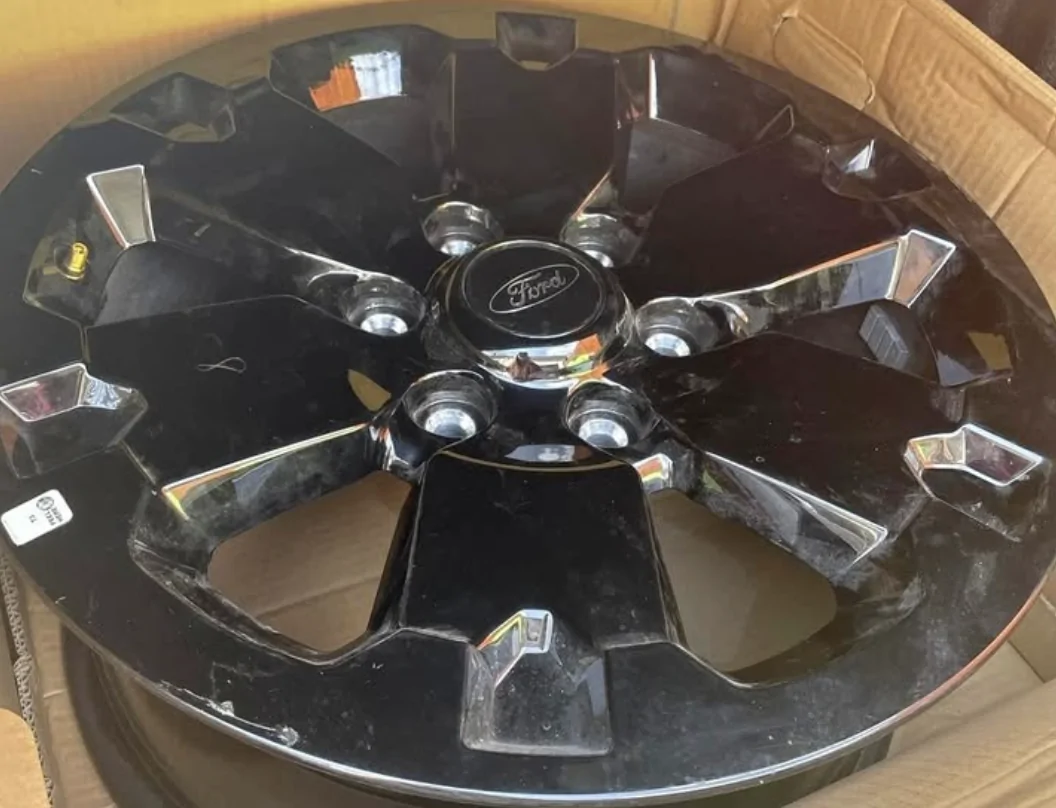

Thank you. I'll check out the spacers and the calculator. The top picture is a gloss black wheel-the reflection makes it appear chrome. Here's a different picture..
