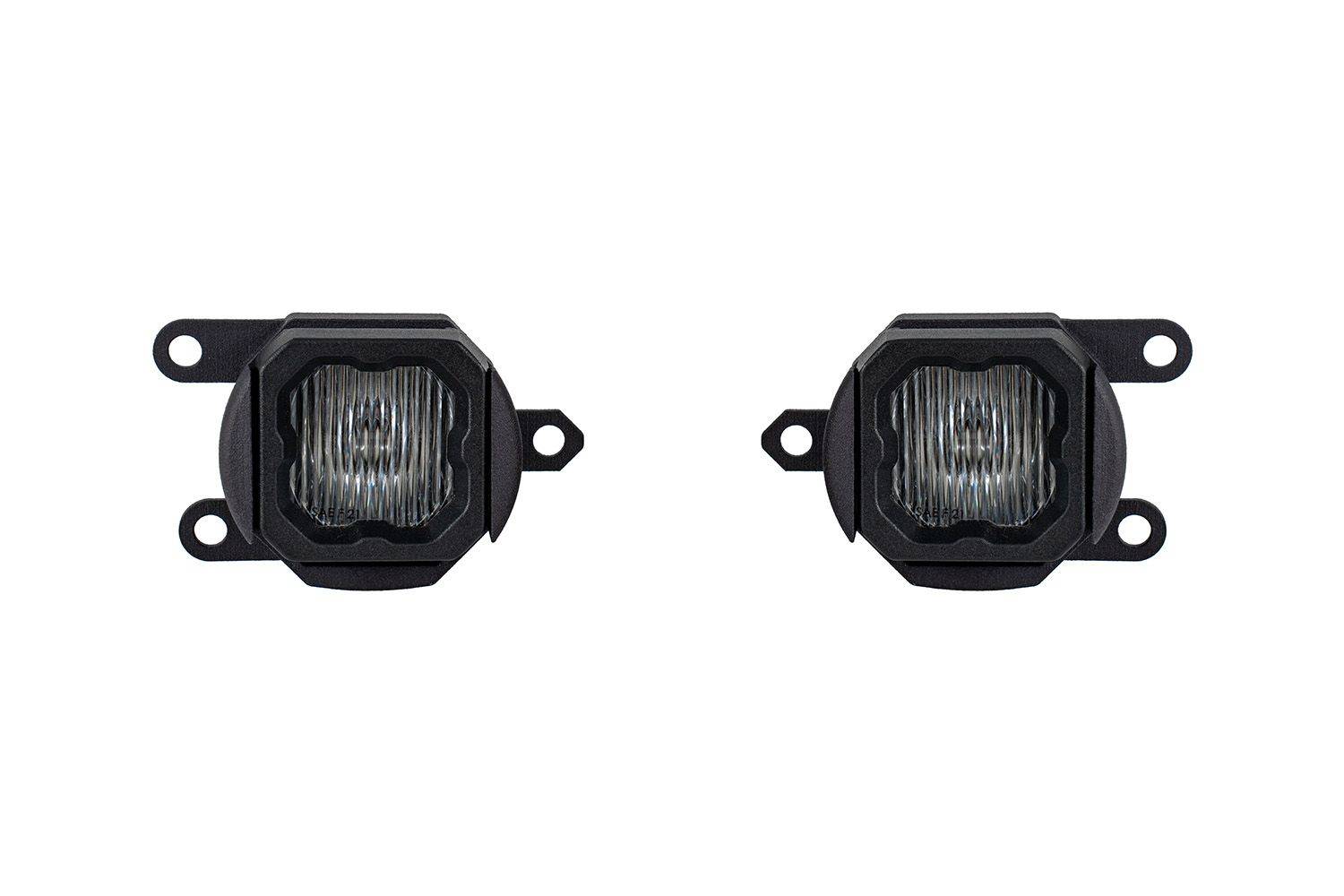

Diode Dynamics SSC1 LED Fog Light Kit for 2024 Ford Ranger Raptor
Features
- Direct replacement for Ford Ranger Raptor fog lamps
- Advanced TIR optics provide high efficiency and focus
- SAE-compliant road-legal output
- Includes one-piece 3D-printed bezel, for factory-style appearance
- Plug and play, no modification needed
- Engineered and Assembled in USA
Overview. Upgrade the fog lights on your Ford Ranger Raptor with our SSC1 Fog Light Bracket Kit! Featuring higher output intensity than any other 1” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included one-piece 3D-printed bezel, the SSC1 Fog Kit has a clean, factory-style appearance, only much brighter! This kit includes custom 3D-printed brackets designed and produced by Foxbeam Lighting. Learn more about Foxbeam Lighting here.

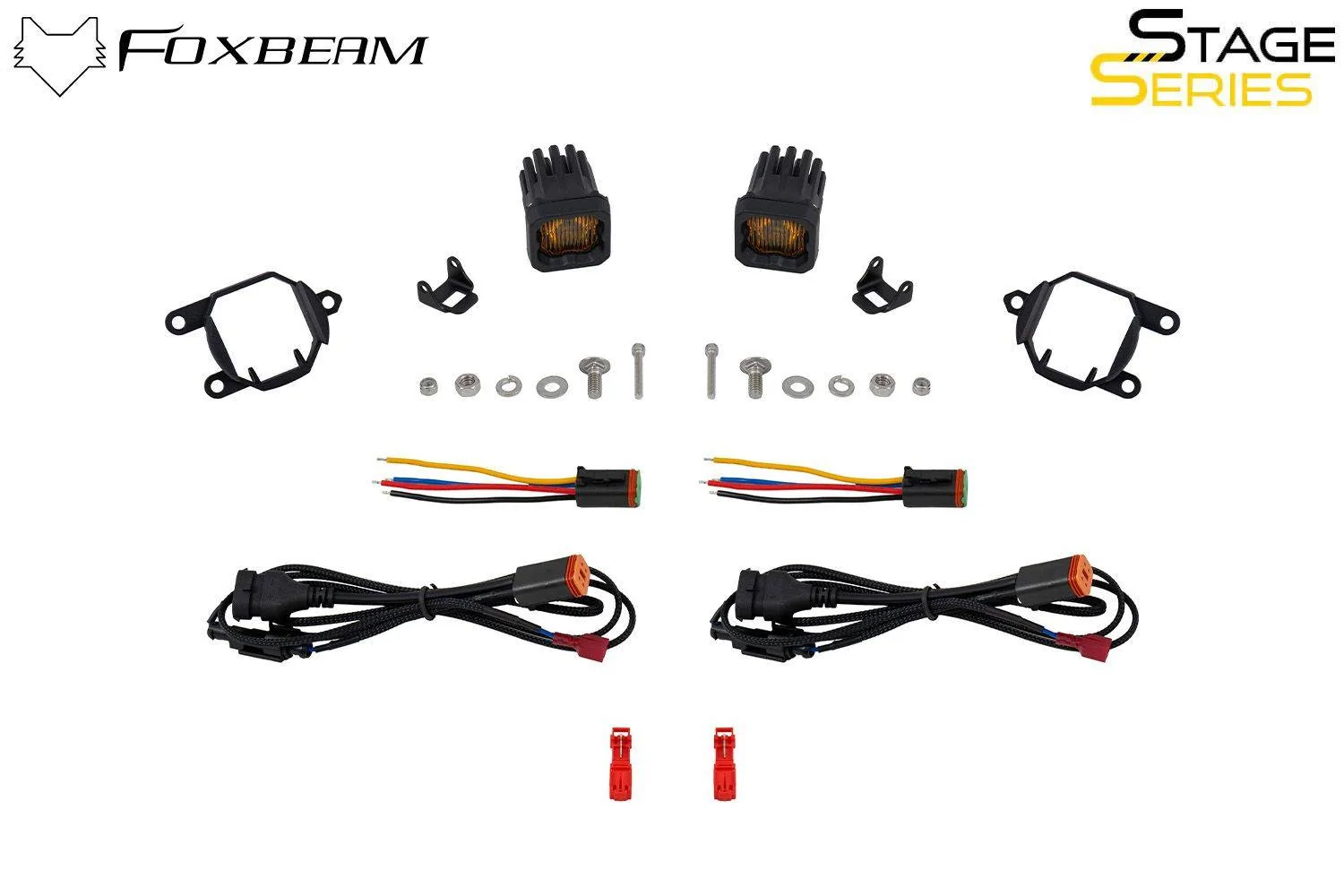

Plug and Play - Thanks to custom 3D-printed brackets, the SSC1 Fog Light Bracket Kit can be installed on your Ford Ranger Raptor in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!
Focused - Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SSC1 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SSC1 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SSC1 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
SAE Compliant - All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

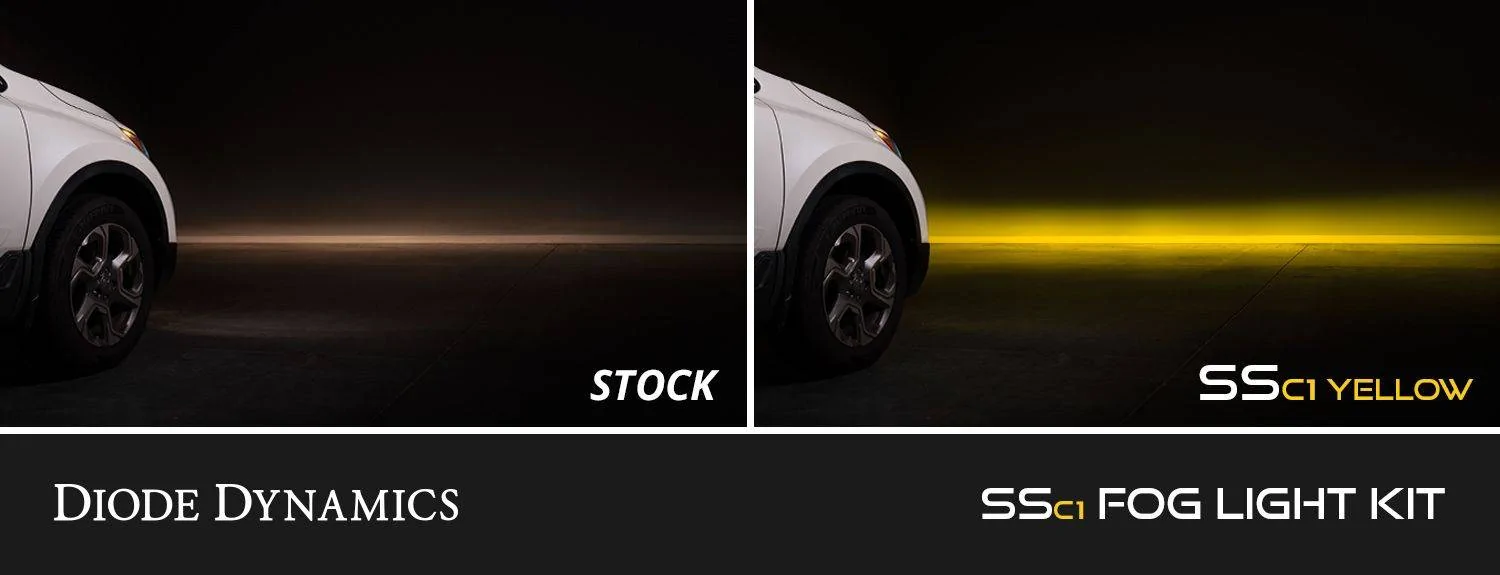

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 98-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.
When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Backlight Functionality - The SSC1 LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SSC1's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

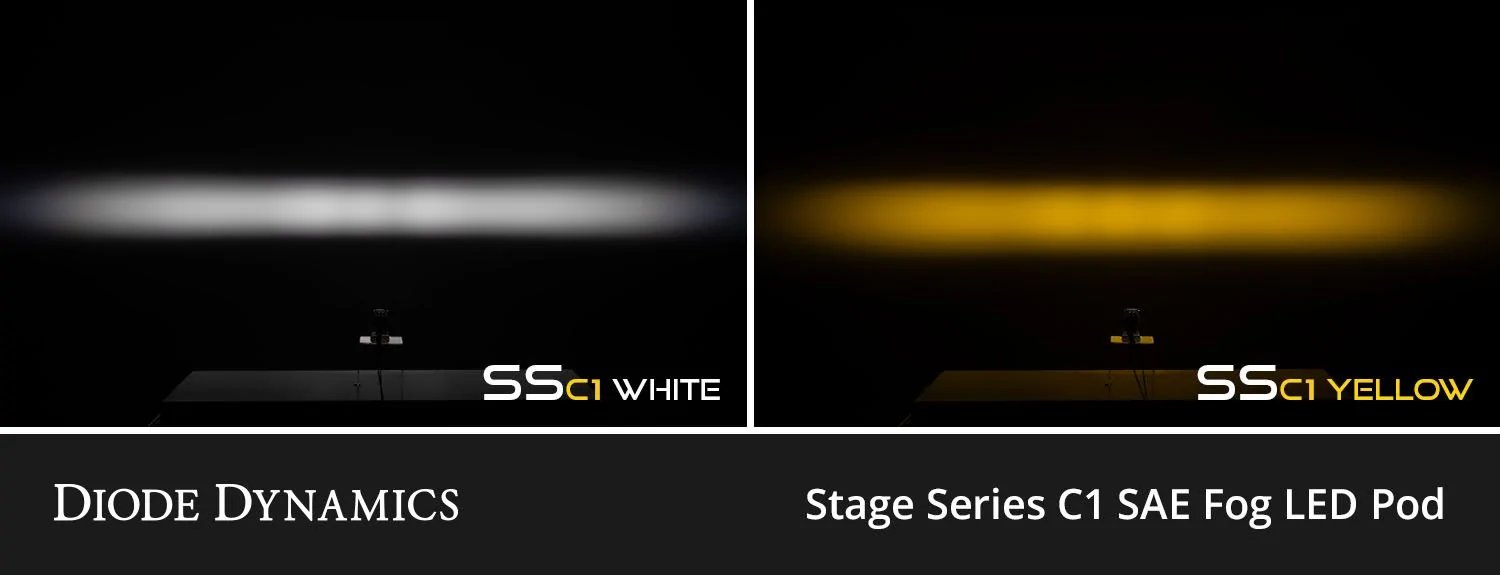

White or Yellow - All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
Proven Reliability - Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience - After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a Ford or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
Warranty
3 Year Bracket-Replacement Limited Warranty
Foxbeam provides a 3 Year Worry-Free Warranty on all fog light brackets. If you experience any defect with a product, we will provide a replacement from Foxbeam if necessary. There is no need to wait for a return and repair process.
8 Year Limited Warranty
In addition to Foxbeam's bracket-replacement warranty, and Diode Dynamics' standard 3 Year replacement warranty on Stage Series lighting, this product carries an additional 5 years of protection against manufacturing defect on your Stage Series lights, for a total of 8 years of warranty coverage. Click here to learn more.
