Fuse box diagram / table?

[Garaged]

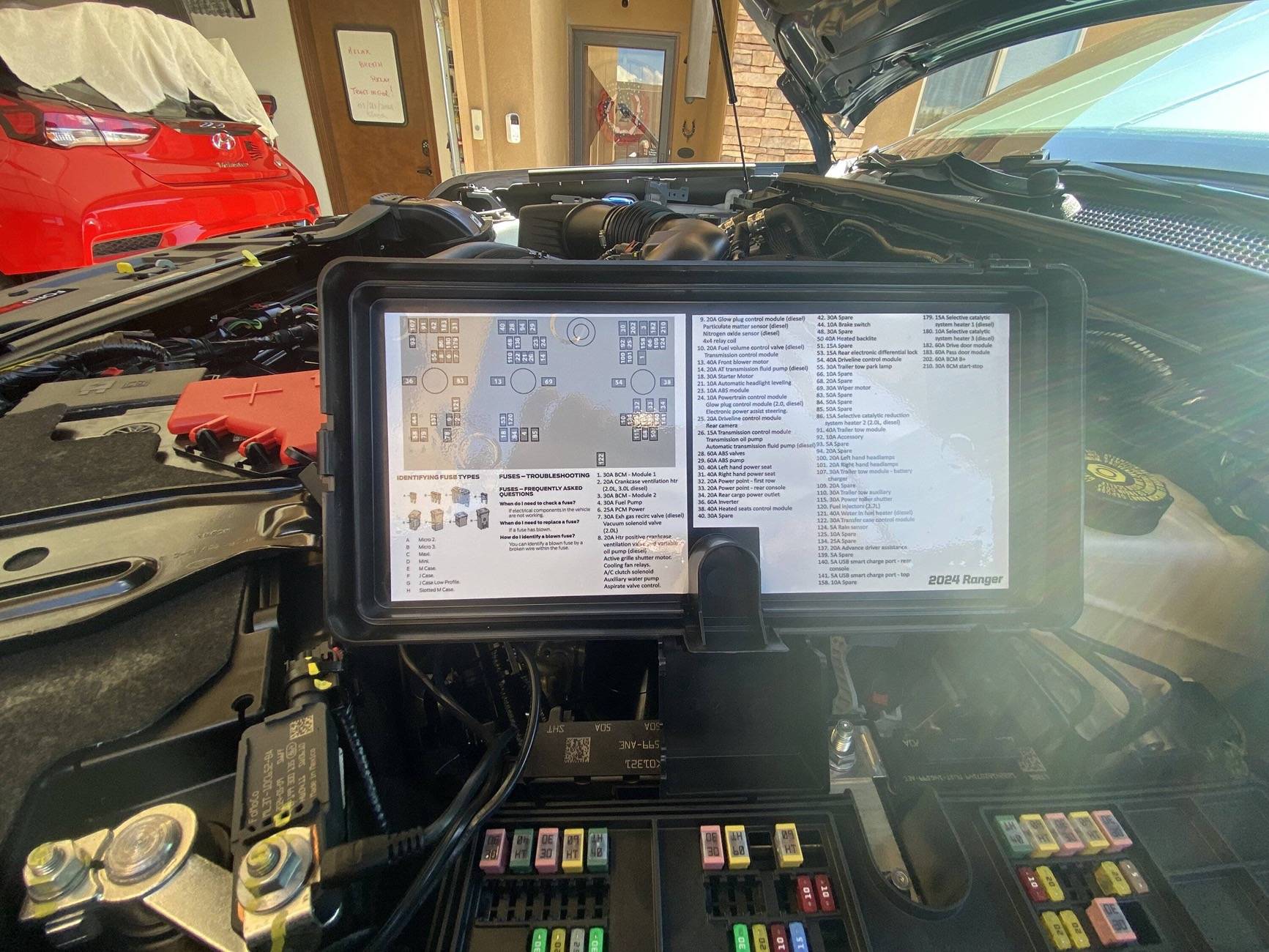

Has anyone found the right fuse box diagrams that match the under-hood fuse box (and for that matter the interior one as well) for the 2024 Ranger (Raptor if it matters)? The attached picture is what mine looks like.

However, I can't correlate the fuses - them being populated even in many cases - to the numbers in the table on sites like fuseinfo. https://fusesinfo.com/ford/fuse-box-diagrams-ford-ranger-2024 Am I just reading them wrong? For instance, I'm looking at the lower right of my photo - fuses 44, 137, 9, 2 - but there are only 3 fuses in that row and I can't seem to match them up against the descriptions either for one of them.

For context, trying to find 'safe' fuses to tie in the amber grille lights (super low consumption ~7 watts) + the amber DRLs of A-pillar lights and maybe a grill light bar's Amber DRL (like the M&R one).

Pardon the dust, I got hit by a storm of pollen while working on the grille amber light install.

Sponsored



[Catalyst]

Yes, I bought this from Stickerfab for mine which is handy to have... Printed Series 2024+ Ford Ranger Underhood Fuse Box Lid Labels | StickerFab



[Garaged]

Yes, I bought this from Stickerfab for mine which is handy to have... Printed Series 2024+ Ford Ranger Underhood Fuse Box Lid Labels | StickerFab

That's the same as the diagram I linked to. So maybe I'm reading it wrong?



[Catalyst]

With a Raptor, why are you not using the pre wired AUX upfitter options? Those are documented by location and colors of wiring leads in the manual



[Jon52]

Not sure if these help or not but these are ford diagrams I pulled from a raptor



[Garaged]

With a Raptor, why are you not using the pre wired AUX upfitter options? Those are documented by location and colors of wiring leads in the manual

I do use aux1 for my grille lights for now but I'd rather reserve them for lights that need control rather than ones that are low power and that I'd like on all the time.



[Garaged]

Not sure if these help or not but these are ford diagrams I pulled from a raptor

This matches so much better (though I guess F141 is the only one missing in the list)! Thanks a ton. You wouldn't happen to have the interior ones too, would you?

Now I just need to decide which fuse is something less critical that I can tap with an additional 5A fuse without worrying.



[Jon52]

This matches so much better! Thanks a ton. You wouldn't happen to have the interior ones too, would you?

Now I just need to decide which fuse is something less critical that I can tap with an additional 5A fuse without worrying.

I think these should be the interiors.



[Garaged]

Thank you! Are these all in the manual already and I've not looked hard enough? What is the source?



[RANGER/HOBB]

Sticker Fab; This might help. https://www.stickerfab.com/products...labels-2024-ranger?keyword=2024 Ford Ranger R



[Garaged]

Sticker Fab; This might help. https://www.stickerfab.com/products/printed-series-underhood-fuse-box-lid-labels-2024-ranger?keyword=2024 Ford Ranger R

Sticker Fab has the wrong numbers and fuse locations in there if you look at the diagrams that Jon posted, which match up better with my 2024 Ranger Raptor's fuse box.



[Jon52]

Thank you! Are these all in the manual already and I've not looked hard enough? What is the source?

I work at a dealer so I just looked it up on my own truck
