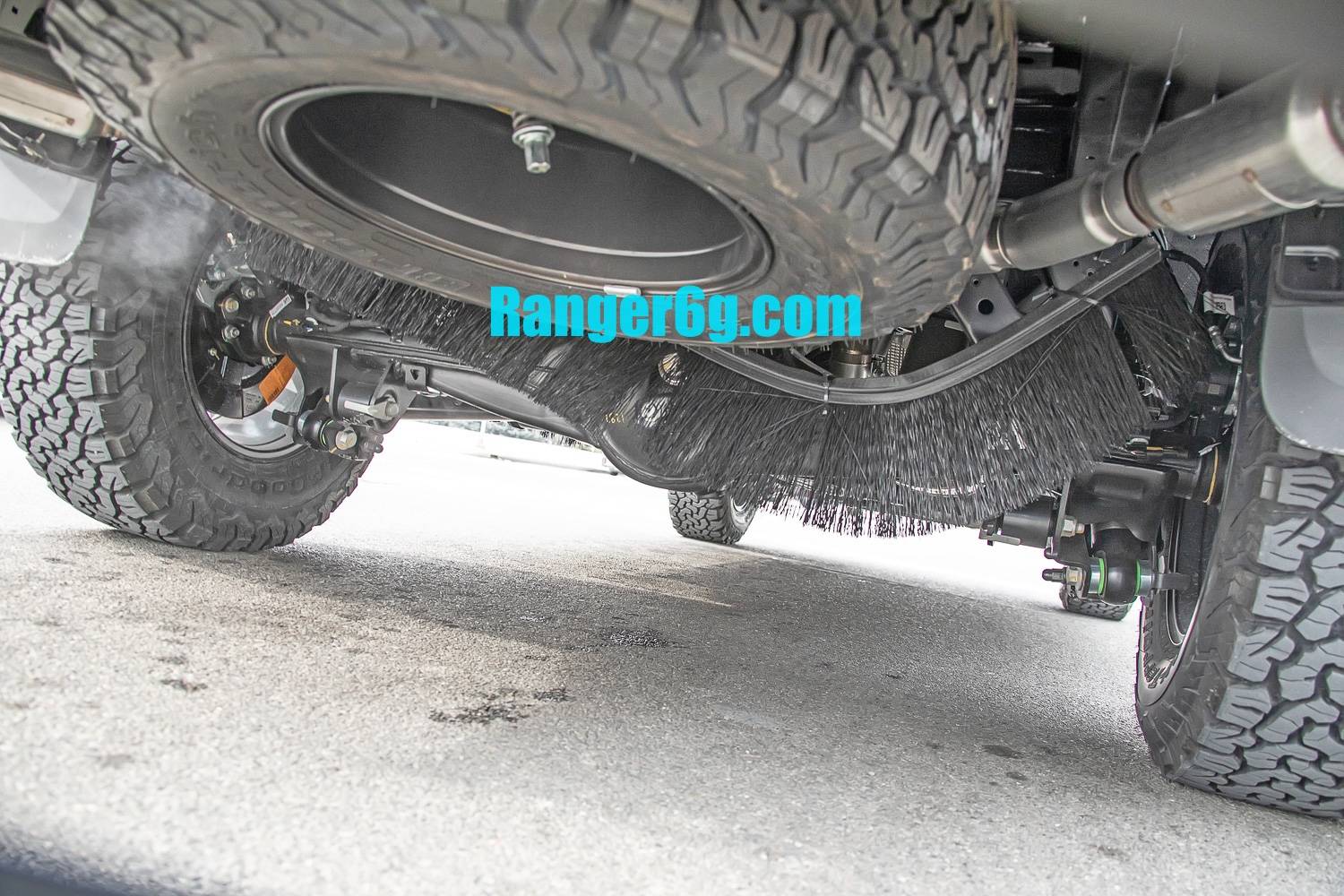

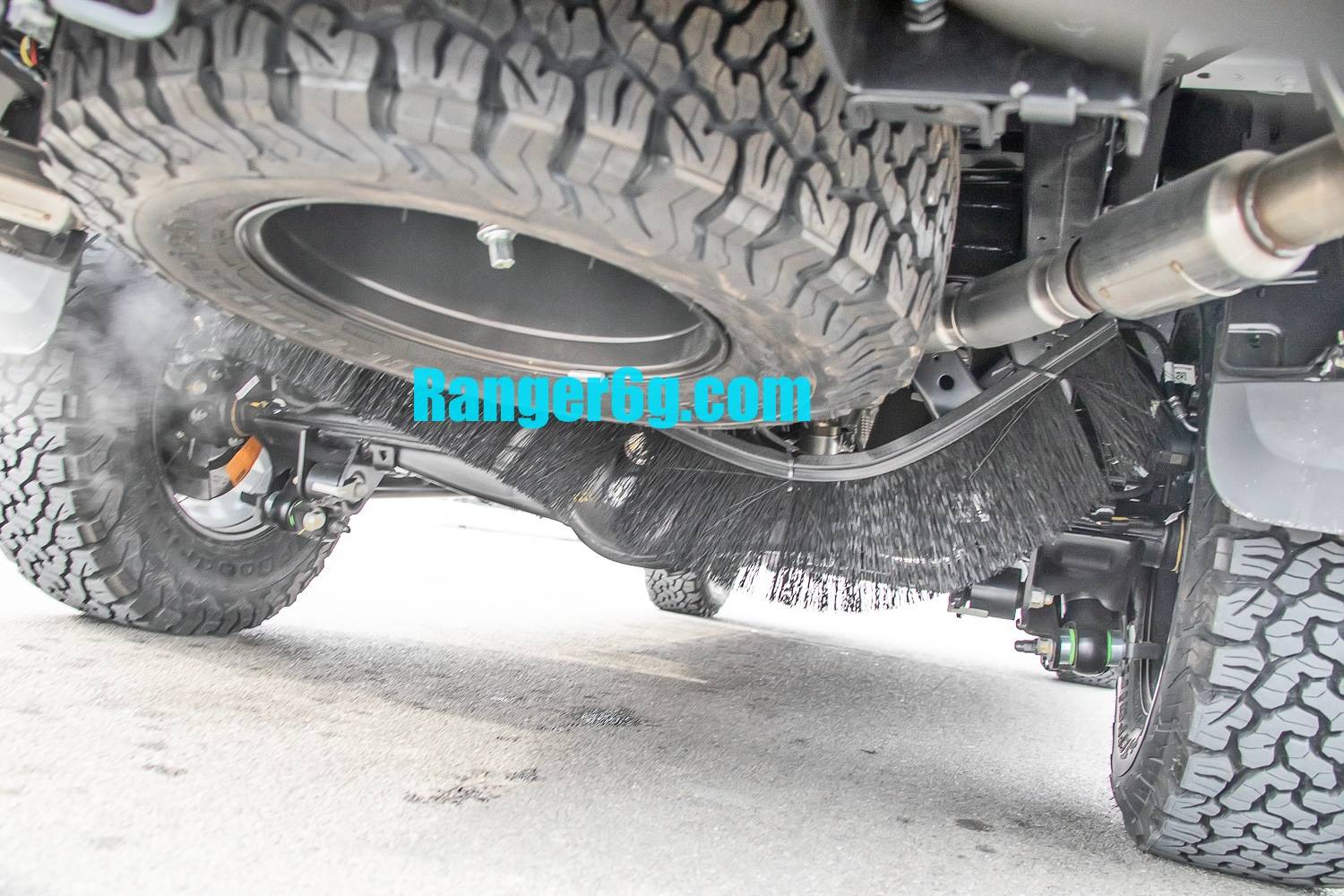

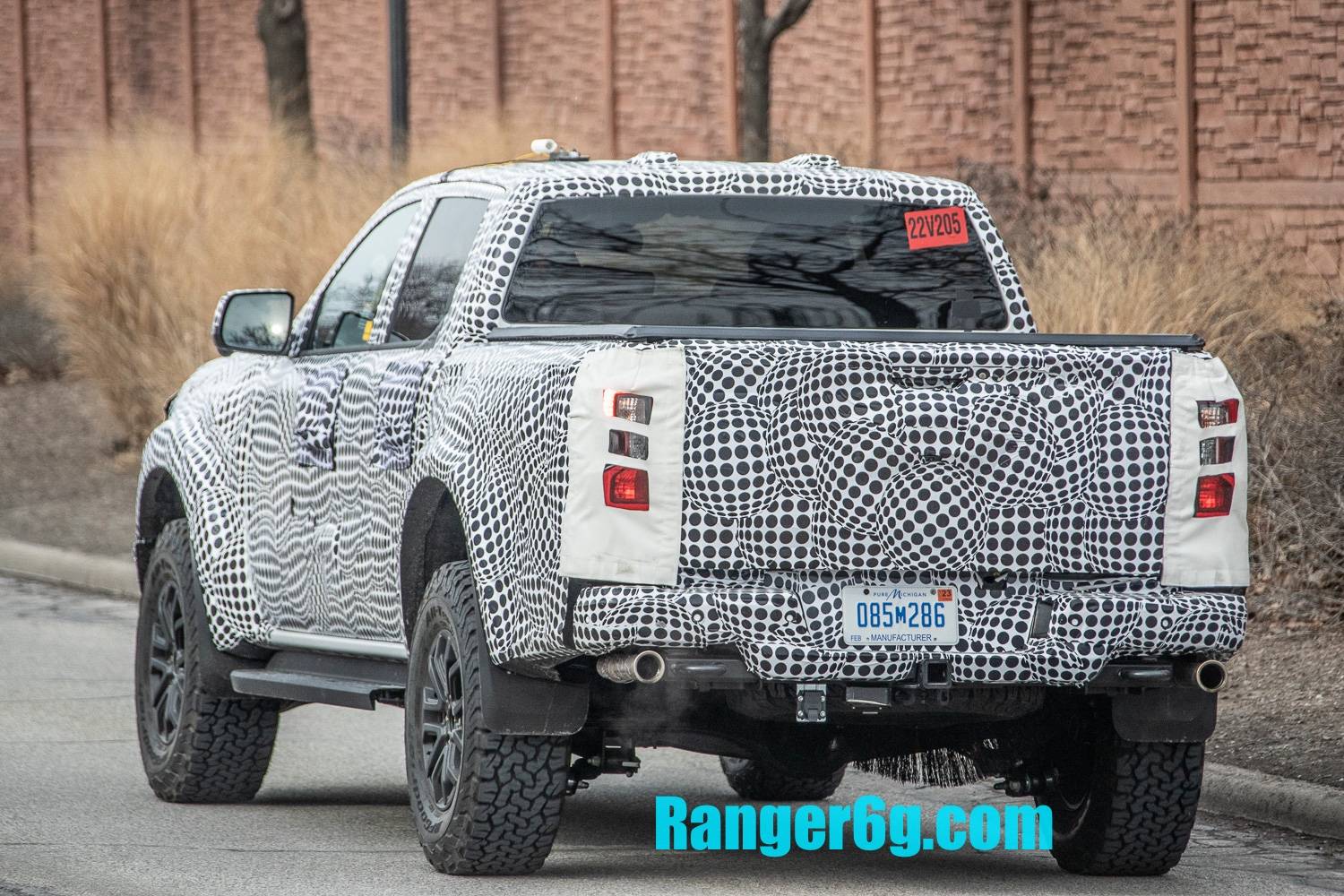

We just got a chance at a closeup look at the rear suspension design of the 2023 Ford Ranger Raptor, revealing a coil-spring design to match the F-150 Raptor and its upcoming Bronco Warthog counterpart.

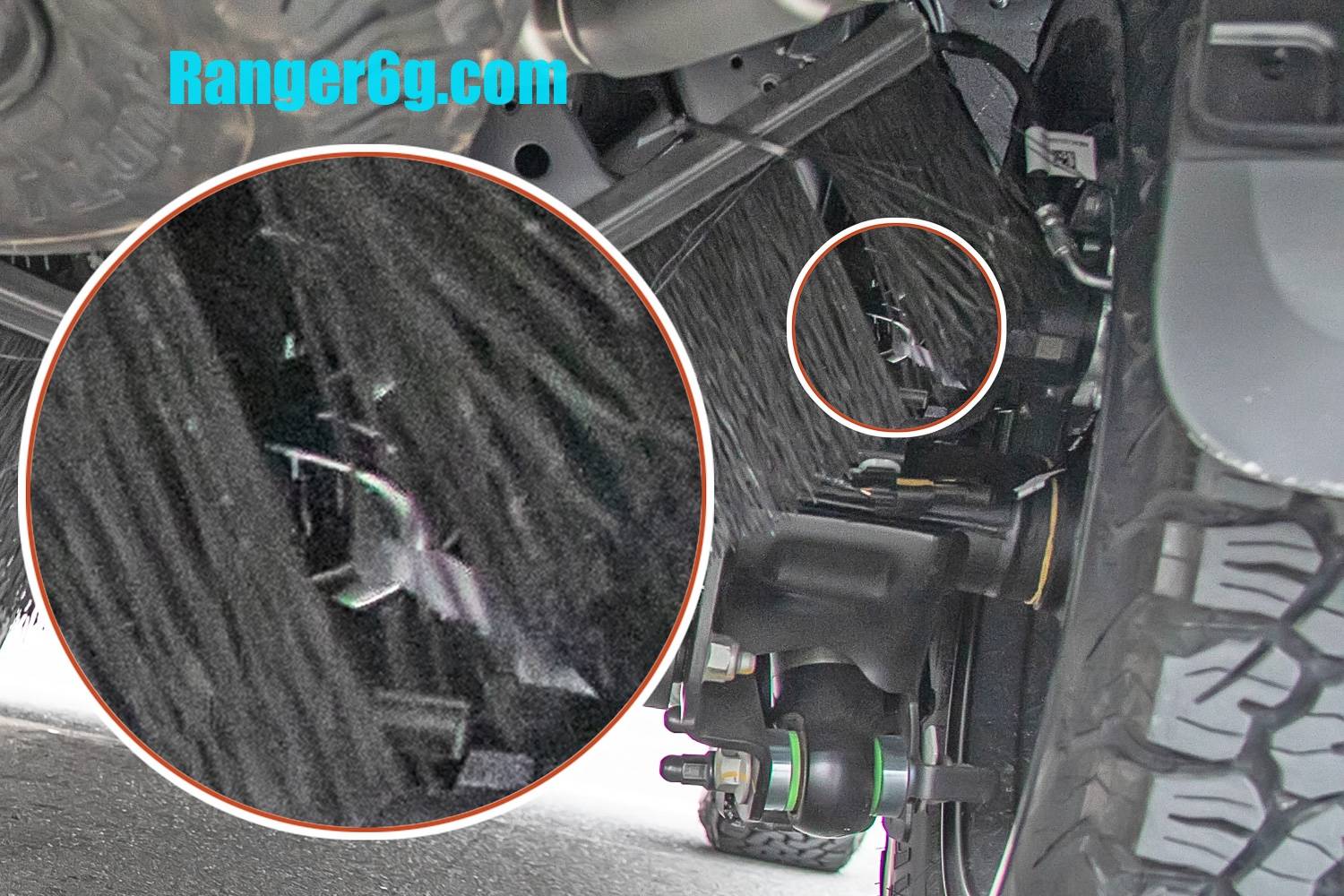

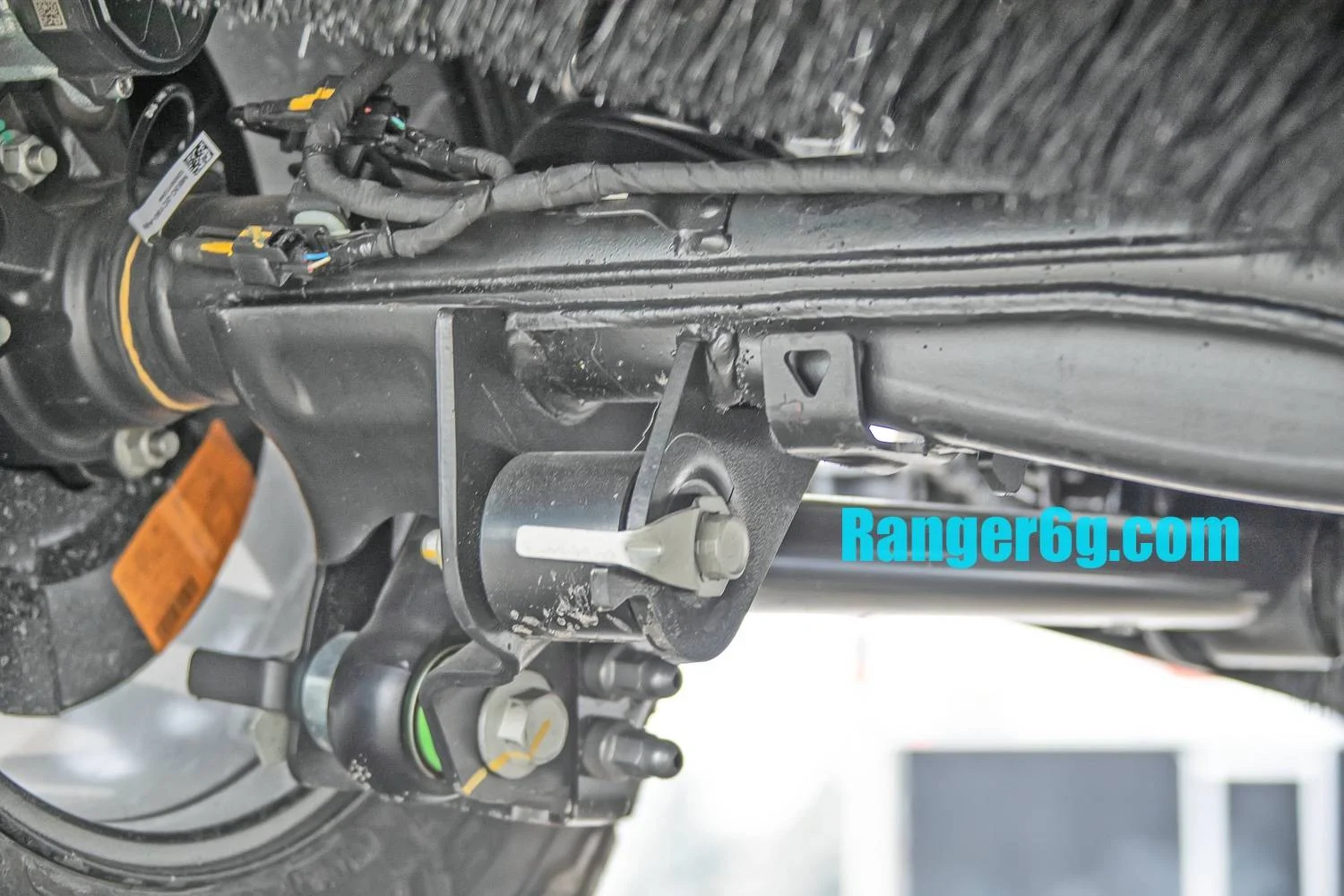

The brush-style camouflage made for a tricky workaround, but we managed to get an angle that fully reveals a coil spring, and the clear absence of leaf springs. Given that the new Ranger Raptor will be closely related to Ford’s Raptor-spec Bronco Warthog, the existence of Fox Live-Valve shocks under the midsize baja truck would seem to be a sure thing.

















Enessy

New Member
First Name
Nate
Joined
Jan 22, 2021
Messages
4
Reaction score
1
Location
Canada
Vehicle(s)
Frontier Pro4X, Q50 Red Sport, KTM 1290R

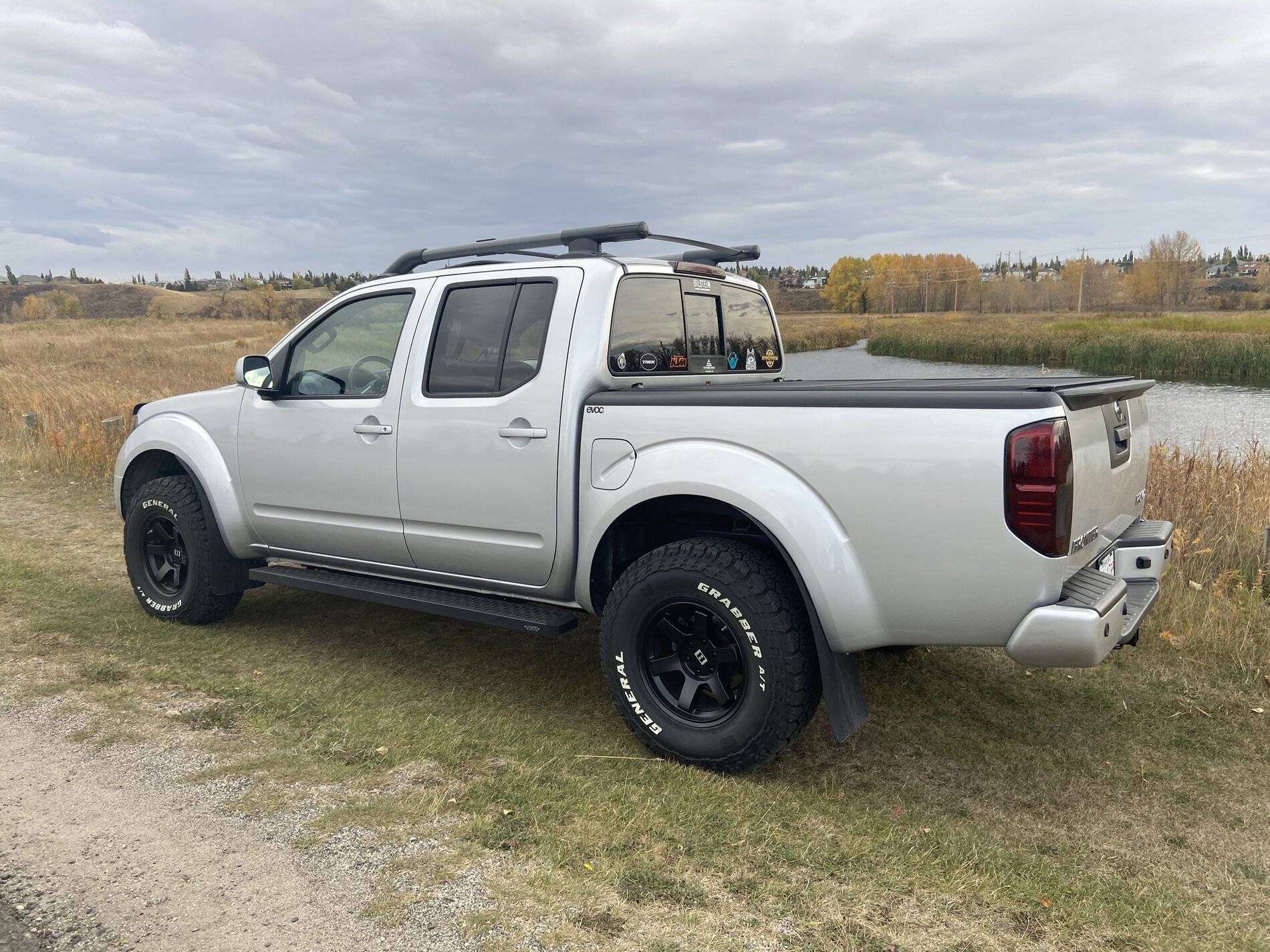

Aren’t the GeneralGrabber ATX’s coming on these trucks? I’m running them on my Pro4X I bought while I’m waiting for the Raptor to come to Canada after my F150 was decidedly too big for the mtn bike and surf spot trails we need to get to. I prefer the Grabbers to the KO2’s.



DHH

Member
Joined
Dec 23, 2020
Messages
12
Reaction score
9
Location
Somewhere
Vehicle(s)
2019 Ranger Lariat FX4
Oh Boy, another "leak" ;)

I wouldn't be surprised to see a similar set up on the regular Ranger.
I know it's early, but so far I am liking what I see for styling and mechanicals.

Now, can you get us a "leak" on the interior. Really hoping Ford improves on the Ranger's interior quality and options........although I'm not holding my breath after seeing the reveal of the Bronco.


Scooter

Well-Known Member
First Name
Brian
Joined
Jan 24, 2021
Messages
48
Reaction score
28
Location
Vancouver, BC, Canada
Vehicle(s)
65 Comet, 2011 Ford Ranger
The Ranger Raptor and the WartHog will be pricey. If I was a betting man the standard Ranger will be affordable. Built to a cost. Knowing your Market. I think the Ranger will keep with the Leaf Spring. Ford will keep with the 2.3L and the 10spd Tranny. We will see if the Manual trickles over from the Bronco. I am happy I should be able to get the Super Cab, XL FX4, hopefully with the 40 mile range PHEV setup.


bill_AUS

New Member
First Name
Billy
Joined
Apr 24, 2021
Messages
1
Reaction score
1
Location
Victoria, Australia
Vehicle(s)
2020.75 Ford Ranger Raptor, 2013 Ford Ranger XLT s
Occupation
Senior Eng & Tech advisor

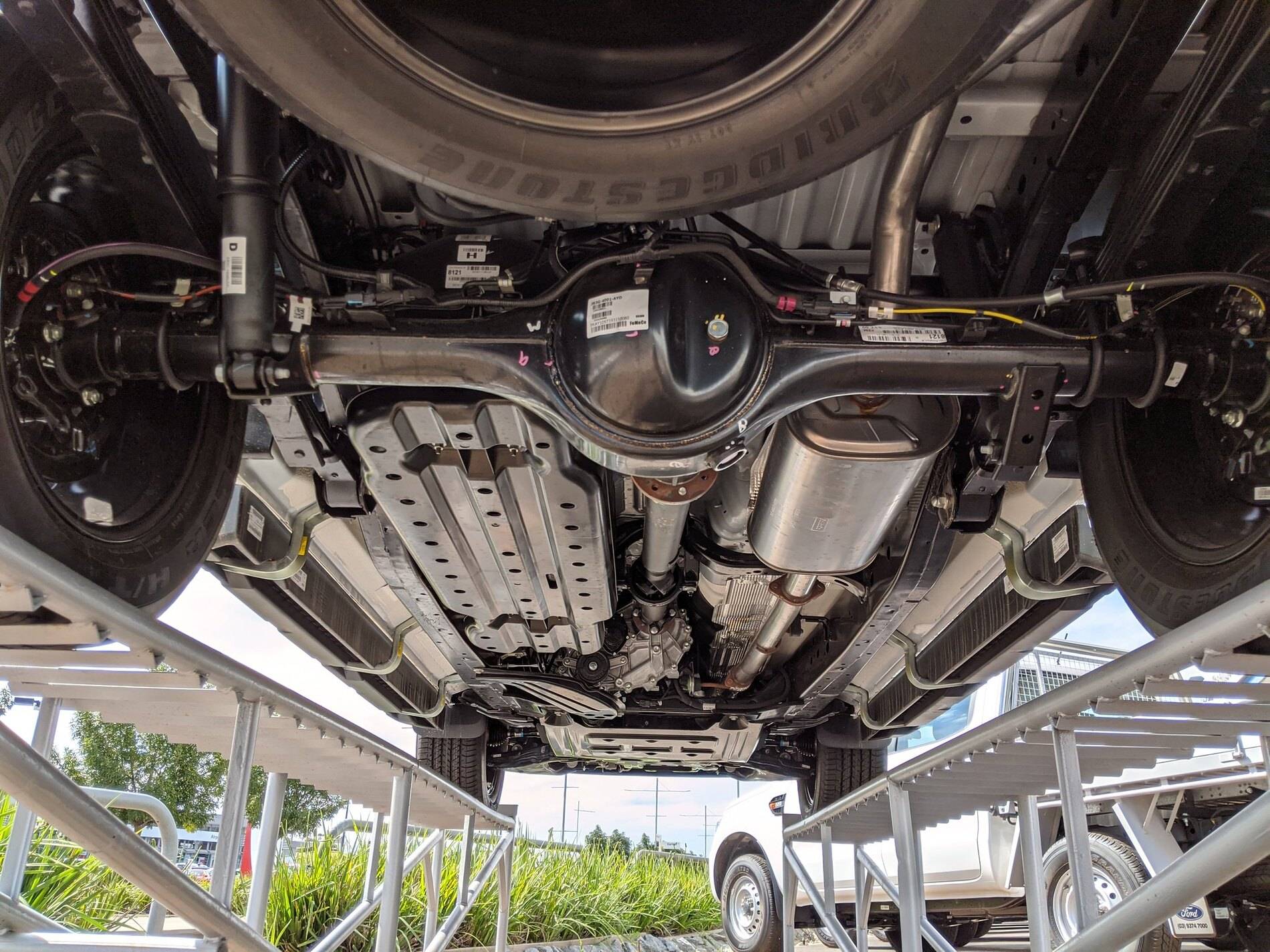

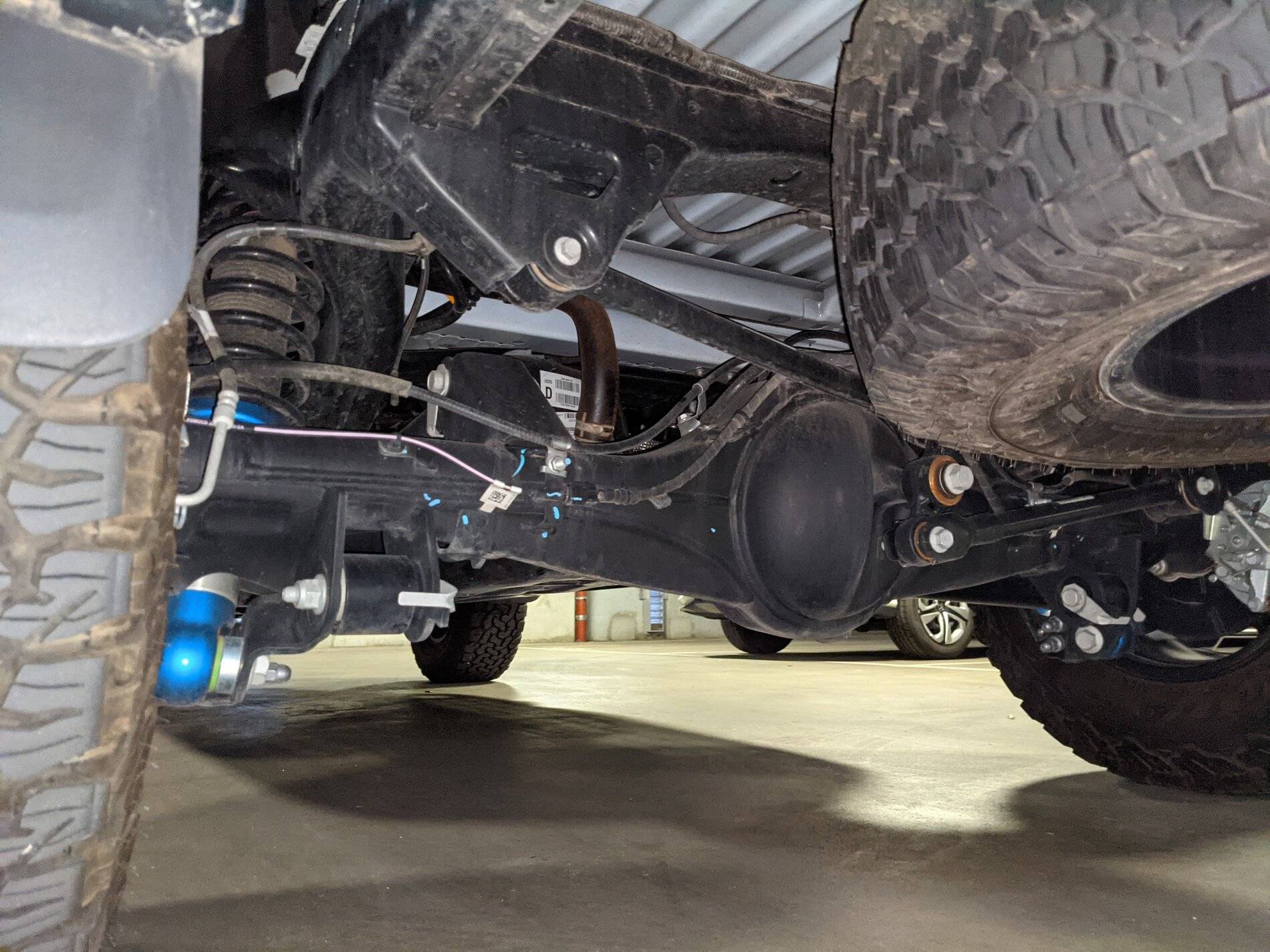

Looks to be the same rear axle as my 2020 Ranger Raptor (I'm in Australia), which is no real surprise. The next gen Ranger on the whole is basically a reskin with engine updates not a whole new vehicle.
,


MrKnowitall

New Member
Joined
Jun 13, 2021
Messages
3
Reaction score
1
Location
SE MI
Vehicle(s)
JKUR
Looks to be the same rear axle as my 2020 Ranger Raptor (I'm in Australia), which is no real surprise. The next gen Ranger on the whole is basically a reskin with engine updates not a whole new vehicle.
,
The axle itself is curious to me- your Australasian market Rangers get a Banjo axle, while US models get a Dana Advantec 220 (D44 equivalent Salisbury axle. Unless someone decided that the US Raptor and Warthog would get Banjo axles, this isn't US spec truck.


HarryD

Well-Known Member
Joined
Sep 3, 2019
Messages
56
Reaction score
8
Location
Western MA
Vehicle(s)
Upcoming 2020 Ranger Lariat
If they don't change the tire size from the currently built Ranger Raptors, they will be 285-70r17.
