Folding Headrests installed

[jedadiah]

I missed the folding headrests in the rear of my 5G SuperCab, so I asked around to see if they would fit in my new truck. I found a set on eBay and they they're a direct fit. For an XLT with the dark cloth interior, the part number is MB3Z21611A08CC.

Sponsored



[jedadiah]

Ebony Cloth matches my XLT exactly.

This should cover them all. The '21 and up Ranger SuperCabs had a recall that gave them all folding headrests since the non-folding ones interfered with car seats and unlike the SuperCrew, you can't fold the seats down to take them out.



[fordtrks4ever]

I miss them also they were on both my 2015 and 2019 F150's
I just removed them and put both in the storage under the seat.
Easy enough to put them on if I have anyone in the back seat.



[Hdale85]

Hmm I'd just want 3 of the middle ones.....lol



[24'Ranger]

Now that's an idea!!! I may have to order the folding versions or the middle seat headrest.

Here's the part number of the middle seat headrest, KB3Z26611A08CC
2023 Ford Ranger 2.3L EcoBoost A/T 4WD Headrest. CREW CAB, cloth, ebony - KB3Z26611A08CC | Lakeland Ford Online Parts, Lakeland FL

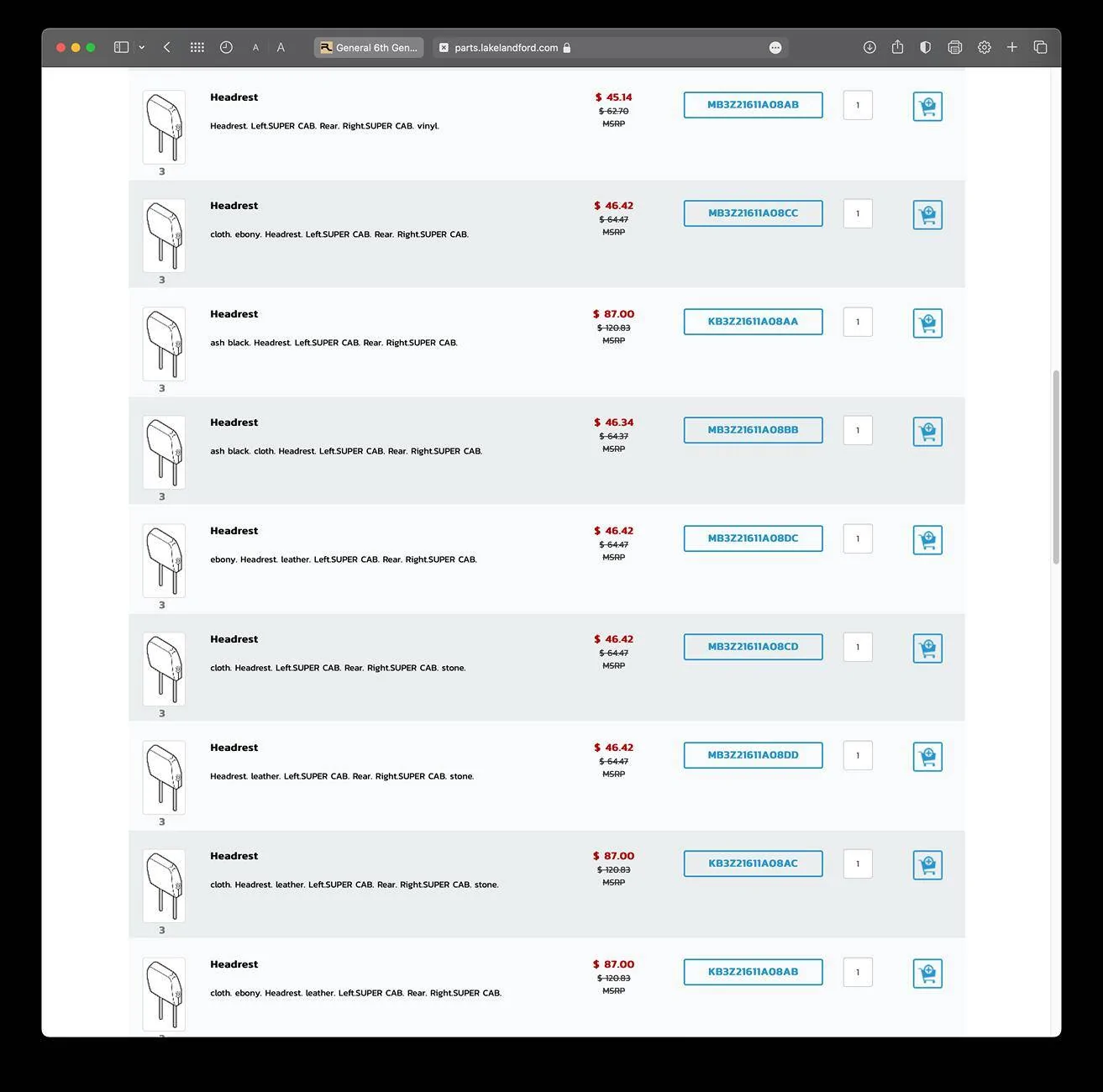

Here's a link to all rear seat parts for the 23 Ranger year, SEATS & TRACKS. REAR SEAT COMPONENTS.. 2023 Ford Ranger 2.3L EcoBoost A/T 4WD | Lakeland Ford Online Parts, Lakeland FL



[jedadiah]

Now that's an idea!!! I may have to order the folding versions or the middle seat headrest.

Here's the part number of the middle seat headrest, KB3Z26611A08CC
2023 Ford Ranger 2.3L EcoBoost A/T 4WD Headrest. CREW CAB, cloth, ebony - KB3Z26611A08CC | Lakeland Ford Online Parts, Lakeland FL

Here's a link to all rear seat parts for the 23 Ranger year, SEATS & TRACKS. REAR SEAT COMPONENTS.. 2023 Ford Ranger 2.3L EcoBoost A/T 4WD | Lakeland Ford Online Parts, Lakeland FL

The post spacing on the middle headrest is completely different, so it won't work. They should have used the ROW design for the headrests or made them fold to start with.



[John B]

Hmm I'd just want 3 of the middle ones.....lol

Check the rod width....I looked into this a month ago, and as I recall, the width of the middle headrest was different from the 2 side ones



[jedadiah]

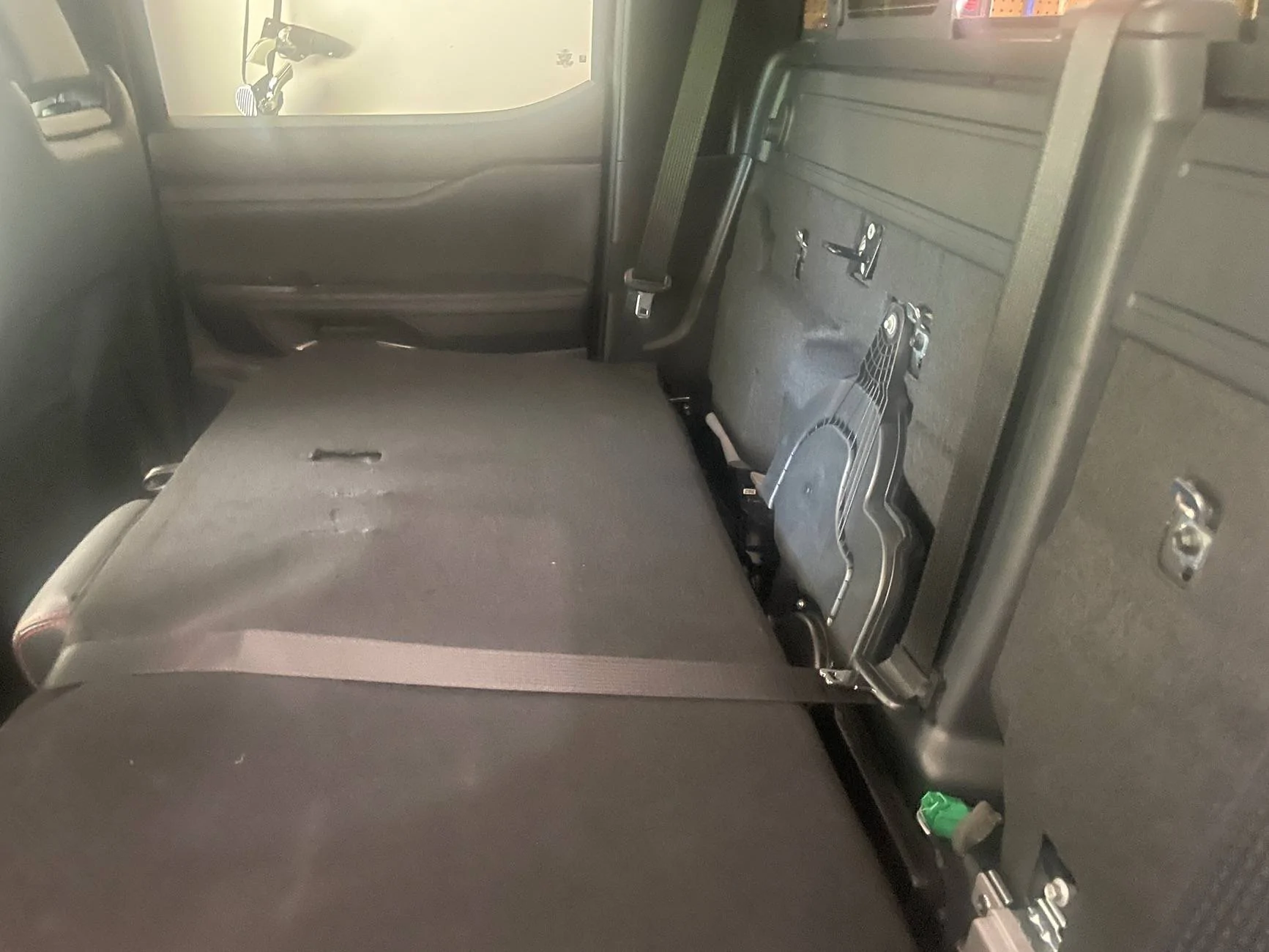

The best part of the a the folding ones is that you don't need to move the seats forward or remove the headrest to put the seat down now. It should have come this way. MY new headrests were $80 through eBay, but are around $100 new from Ford dealers online. Levittown Ford on the 5G forum will give you shipping discount codes if you PM them.



[Hdale85]

Check the rod width....I looked into this a month ago, and as I recall, the width of the middle headrest was different from the 2 side ones

That's sad..... I'll look into it when I finally get mine. I should be ordering a 2.7 Lariat this week I think. We've been tossing back and forth the idea of a raptor or lariat. Wife gets X plan pricing through work so the price difference is about ~6000.



[NickyFlippers]

The inability to fold my backseat down because of the headrests has put me in numerous frustrating situations. The funniest was when I had a large pizza that I didn't want to put on the leather, so I tried folding the seat down but the headrests hit the front seats.

I couldn't put it in the bed, the passenger footwell or the backseat. I have a truck and I couldn't even safely transport a pizza!



[richman555]

The best part of the a the folding ones is that you don't need to move the seats forward or remove the headrest to put the seat down now. It should have come this way. MY new headrests were $80 through eBay, but are around $100 new from Ford dealers online. Levittown Ford on the 5G forum will give you shipping discount codes if you PM them.

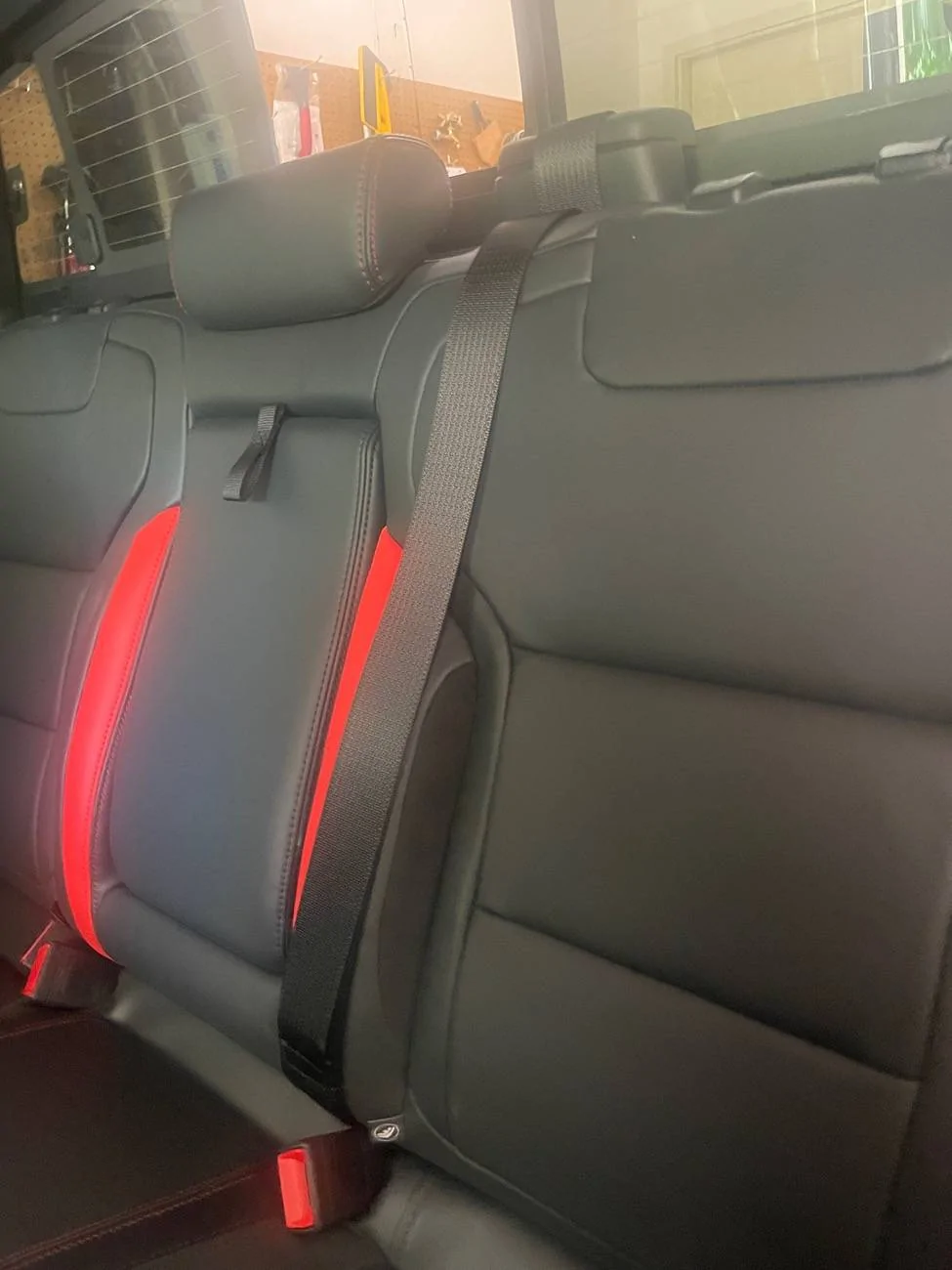

Now find on Ebay something to take care of that center strap!



[jedadiah]

Now find on Ebay something to take care of that center strap!

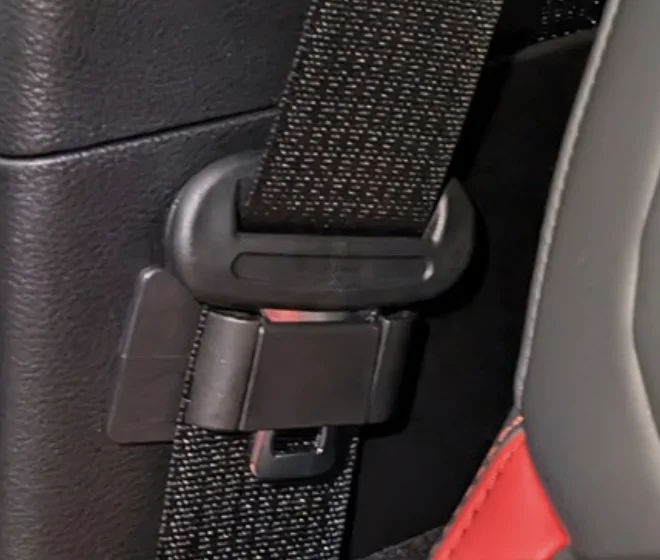

I bet something like this would work if you placed it really low.



[Trail_Guy]

Nice!



[JimR]

I bet something like this would work if you placed it really low.

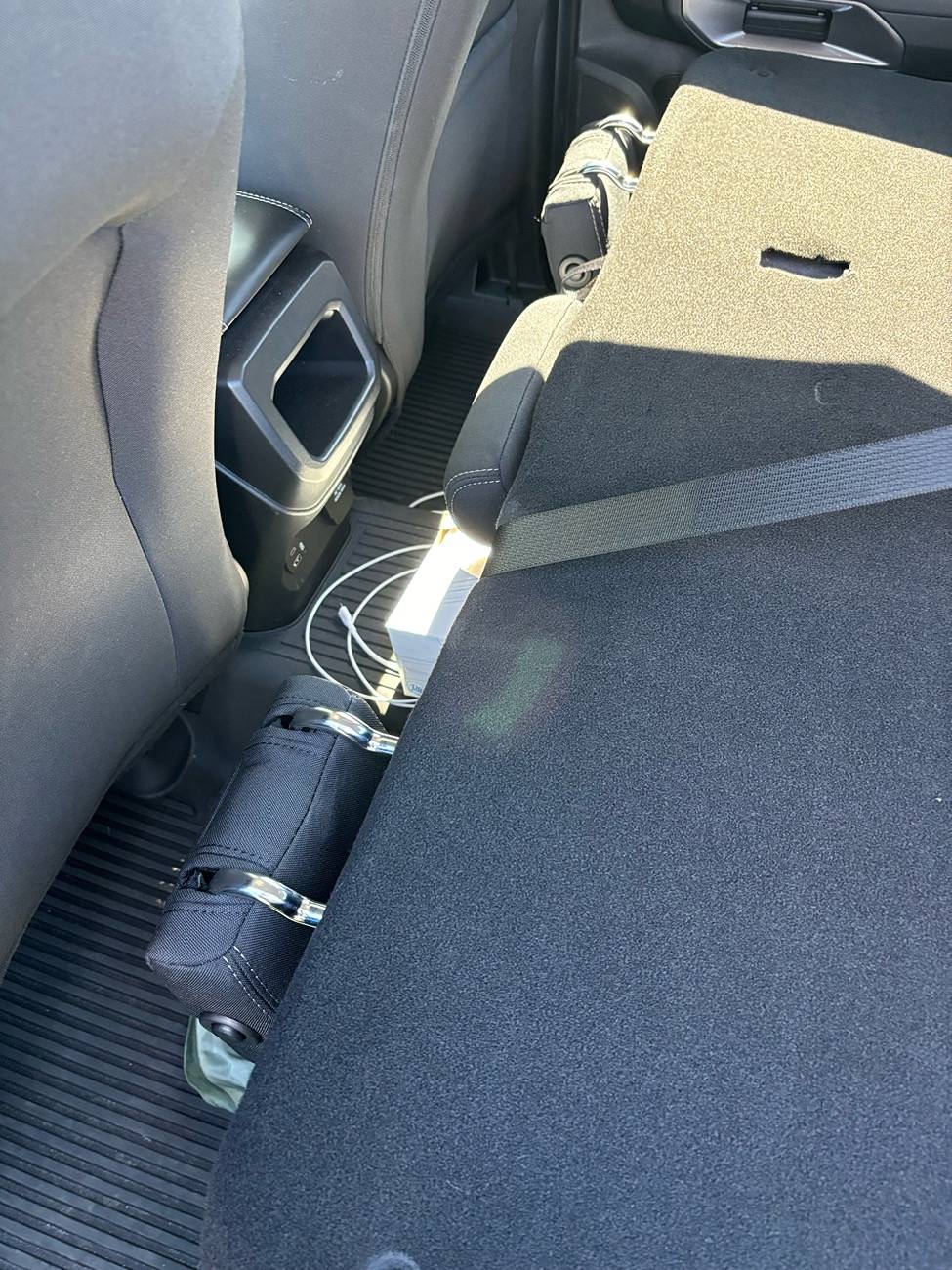

I did something similar to this on my rear middle seatbelt...



[Fordmarine]

I missed the folding headrests in the rear of my 5G SuperCab, so I asked around to see if they would fit in my new truck. I found a set on eBay and they they're a direct fit. For an XLT with the dark cloth interior, the part number is MB3Z21611A08CC.

Will they work on the 24 Ranger XLT SuperCrew??
